PISTON FOR SPRINTER 2.7 DIESEL OM647 2500 3500 (2004 2005 2006)
$96.60
👉 SET FOR ONE PISTON FOR MERCEDES / FREIGHTLINER AND DODGE SPRINTER T1N 2.7L (2004-2006).
SKU: V 142200600 142200700
Categories: PISTON RINGS, PISTONS
Tags: DIESEL ENGINE PARTS, DODGE SPRINTER 2.7L, FREIGHTLINER SPRINTER 2.7L, MERCEDES BENZ OM647DE27LA ENGINE, NPR, OEM A 646 030 01 17, OEM A6460300117, OM647 SPRINTER DIESEL ENGINE, OM647DE27LA, SPRINTER, SPRINTER DIESEL ENGINE PARTS, SPRINTER PARTS
Description
PISTON FOR SPRINTER 2.7 DIESEL OM647 2500 3500 (2004 2005 2006)
(SELECT SIZES: STANDARD, OVR.0.50MM.)

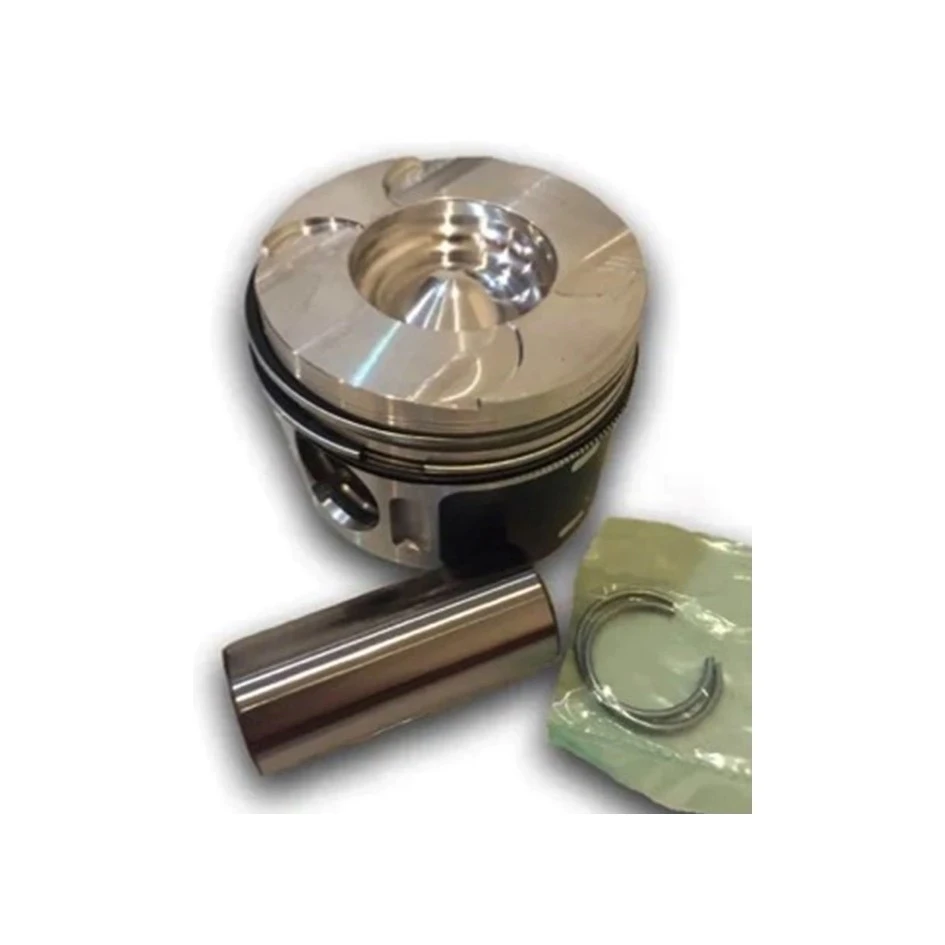

SET FOR ONE PISTON || PISTON COMES WITH PIN, RETAINER AND RING SET INSTALLED.

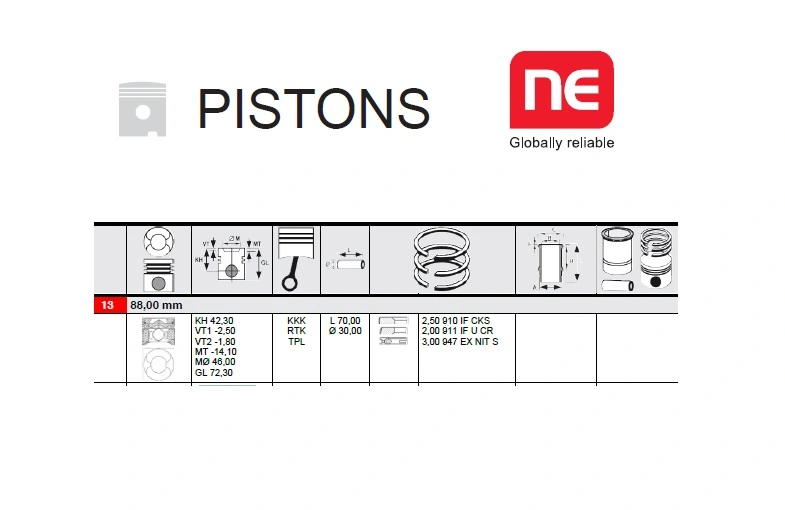

CYLINDER DIAMETER: 88MM.
- COMPRESSION HEIGHT: 42.30MM.
- VALVE POCKET 1 DEPTH: -2.50MM.
- VALVE 2 POCKET DEPTH: -1.80MM.
- BOWL DEPTH: -14.10MM.
- BOWL DIAMETER: 46.00MM.
- TOTAL LENGTH: 72,30MM.
FOR MERCEDES / FREIGHTLINER AND DODGE SPRINTER T1N 2.7L (2004-2006).
>> MERCEDES-BENZ SPRINTER T1N 2500 3500.
MOTOR DIESEL L5 2.7 OM647 ( OM647DE30LA )
YEARS: 2004, 2005, 2006.
>> FREIGHTLINER SPRINTER T1N 2500 3500.
MOTOR DIESEL L5 2.7 OM647 ( OM647DE30LA )
YEARS: 2004, 2005, 2006.
>> DODGE SPRINTER T1N 2500 3500.
MOTOR DIESEL L5 2.7 OM647 ( OM647DE30LA )
YEARS: 2004, 2005, 2006.
QUALITY OF THE ORIGINAL EQUIPMENT MADE IN GERMANY.
BRAND: NPR EUROPE.
YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!
OEM REFERENCE: A6460300117, A 646 030 01 17.
ENGINE SPECIFICATIONS:
DIESEL FUEL, ENGINE SIZE 2.7L, CYL 5, 2686CC, CYL DIAMETER. 88MM.
Code: 142200600, 142200700, 142200600V.
MERCEDES OM647 DIESEL ENGINE SPECIFICATIONS:
PISTON SPRINTER 2.7 OM647 DIESEL 2500 3500
MORE SPARE PARTS FOR THIS OM647 DIESEL ENGINE
Manufacturer | Mercedes-Benz |
---|---|
Production | 1999-2006 |
Provision | |
Setting | Straight-5 |
Displacement | 2.7 liters; 163.8 cu in (2,685 cc) 3.0 L; 180.0 cubic inches (2,950 cc) |
Cylinder inner diameter | 88mm (3.46 in) |
piston stroke | 88.3 to 97 mm (3.48 to 3.82 in) |
valve train | DOHC 20 valves |
Combustion | |
turbocharger | Yeah |
Fuel system | Common-rail direct injection |
Fuel type | Diesel |
Refrigeration system | Cooled hydraulically |
Production | |
power output | 115 to 170 kW (156 to 231 CV; 154 to 228 CV) |
torque output | 330–540 N⋅m (243–398 libras⋅ft) |
Chronology | |
Predecessor | Motor Mercedes-Benz OM605 |
Successor | Motor Mercedes-Benz OM647 |
Additional information
Weight | 2 lbs |
---|---|
Dimensions | 5 × 5 × 5 in |
PISTON SIZE | STD., 0.50MM. |
Brand
NPR of Europe GmbH
NPR of Europe GmbH is a subsidiary of the Japanese engine parts manufacturer NPR – Nippon Piston Ring Co. Ltd. Competent advice and development; product quality and reliable logistics set it apart as an original equipment manufacturer for many well-known engine manufacturers in Europe.
Its piston ring sets are being used successfully across the globe in all categories of engines – be it small two-stroke engines or large lorry diesel engines.
