PISTON SPRINTER 2.7 OM612 2500 3500 (2002-2003)

$93.48$100.75

๐Ÿ‘‰ SET FOR ONE PISTON FOR MERCEDES / FREIGHTLINER AND DODGE SPRINTER T1N 2.7L (2002-2003).

Description

PISTON SPRINTER 2.7L OM612 2500 3500 (2002-2003)

STRAIGHT ROD AND TAPER ROD: (SIZES: STD., 0.50MM.)

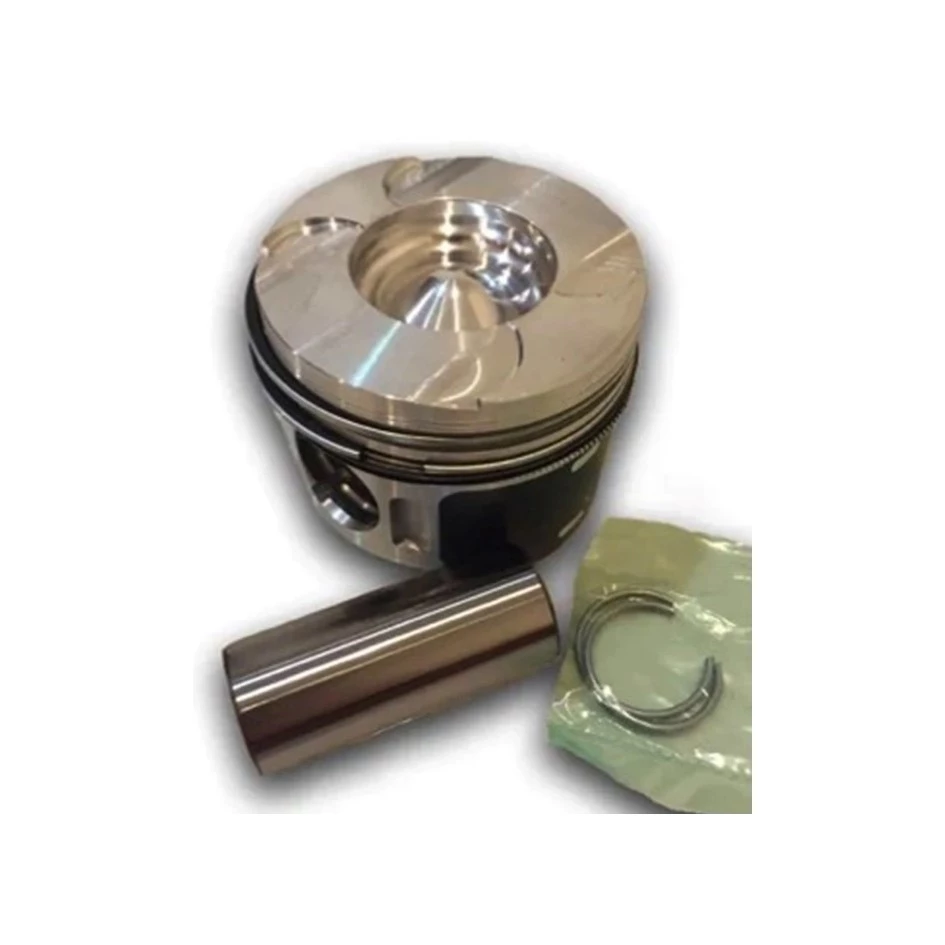

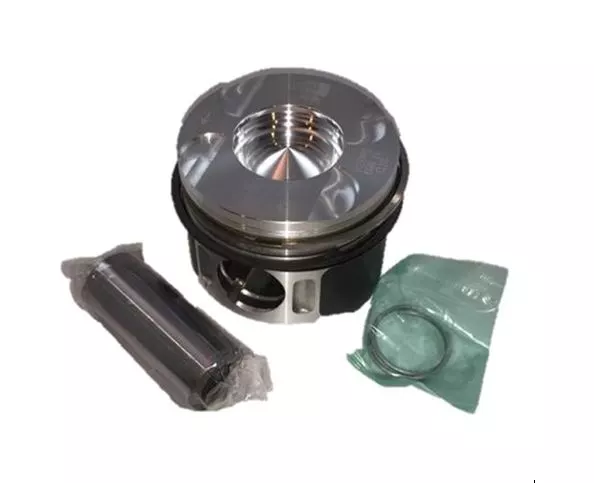

SET FOR ONE PISTON | PISTON COMES WITH PIN, RETAINERS AND RING SET INSTALLED.

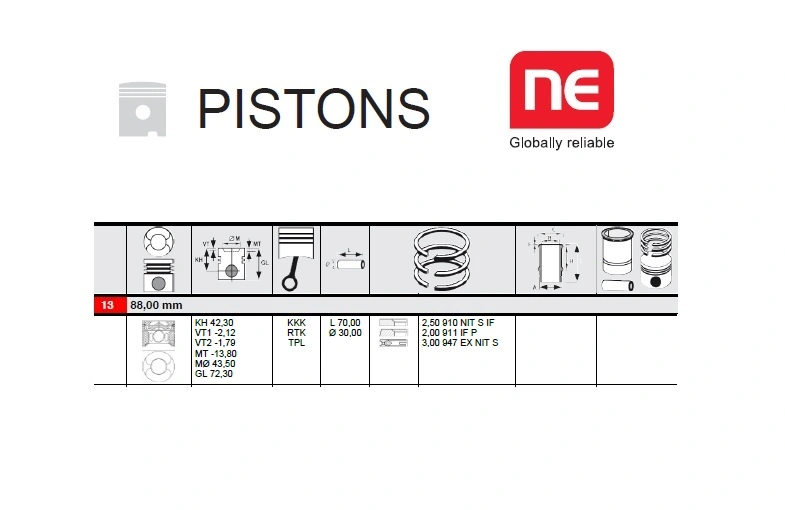

CYL.BORE: 88MM.

  • COMPRESSION HEIGHT: 42,30MM.
  • BOWL DEPTH: -13,90MM.
  • BOWL DIAMETER: 43,50MM.
  • TOTAL LENGTH: 72,30MM.



THESE PISTON SPRINTER 2.7L OM612 REPLACEMENT FIT FOR:



>> MERCEDES-BENZ SPRINTER T1N 2500 3500.

DIESEL ENGINE L5 2.7 OM612 ( OM612DE30LA )

YEARS: 2002, 2003.



>> FREIGHTLINER SPRINTER T1N 2500 3500.

DIESEL ENGINE L5 2.7 OM612 ( OM612DE30LA )

YEARS: 2002, 2003.



>> DODGE SPRINTER T1N 2500 3500.

DIESEL ENGINE L5 2.7 OM612 ( OM612DE30LA )

YEARS: 2002, 2003.



ORIGINAL EQUIPMENT QUALITY MADE IN GERMANY.

BRAND: NPR EUROPE.

YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!
OEM REFERENCE: A6110301117, A 611 030 11 17.



ENGINE SPECIFICATIONS:

FUEL DIESEL, ENGINE SIZE 2.7L, CYL 5, 2686CC, CYL.BORE 88MM.



SKU: 142217800, 142217900, 142217800V.



MERCEDES OM612 DIESEL ENGINE SPECS:



Manufacturer Mercedes-Benz
Production 1999โ€“2006
Layout
Configuration Straight-5
Displacement 2.7 L; 163.8 cu in (2,685 cc) 3.0 L; 180.0 cu in (2,950 cc)
Cylinder bore 88 mm (3.46 in)
Piston stroke 88.3โ€“97 mm (3.48โ€“3.82 in)
Valvetrain DOHC 20 valves
Combustion
Turbocharger Yes
Fuel system Common rail direct injection
Fuel type Diesel
Cooling system Water-cooled
Output
Power output 115โ€“170 kW (156โ€“231 PS; 154โ€“228 hp)
Torque output 330โ€“540 Nโ‹…m (243โ€“398 lbโ‹…ft)
Chronology
Predecessor Mercedes-Benz OM605 engine
Successor Mercedes-Benz OM647 Engine

PISTON STRAIGHT ROD SPRINTER 2.7 OM612 DIESEL 2500 3500



MORE REPLACEMENT PARTS FOR THIS OM612 DIESEL ENGINES

Mercedes Sprinter Van: History In America



Additional information

Weight 2 lbs
Dimensions 5 × 5 × 5 in
PISTON TYPE/SIZE

STRAIGHT ROD / STD., STRAIGHT ROD / 0.50MM, TAPER ROD / STD., TAPER ROD / 0.50MM

Brand

NPR of Europe GmbH

NPR of Europe GmbHย is a subsidiary of the Japanese engine parts manufacturer NPR โ€“ Nippon Piston Ring Co. Ltd.ย  Competent advice and development; product quality and reliable logistics set it apart as an original equipment manufacturer for many well-known engine manufacturers in Europe. Its piston ring sets are being used successfully across the globe in all categories of engines โ€“ be it small two-stroke engines or large lorry diesel engines.
