INFRAME ENGINE REBUILD KIT DEUTZ TRACTOR D4006 | DEUTZ F3L912 ENGINE

Description

INFRAME ENGINE REBUILD KIT DEUTZ F3L912 ENGINE

OIL PAN GASKET NOT INCLUDED, JV8 SILICONE SEALANT RECOMMENDED.

FOR DEUTZ:

• TRACTOR 6150, 6240, 6250, D4006, D4007, D4506, D4507, D4807, D5006, D5206, D5207, D5506, DX3.10, DX3.30.


FORD NEW HOLLAND:

• SKID LOADER L781, L781 DELUXE.

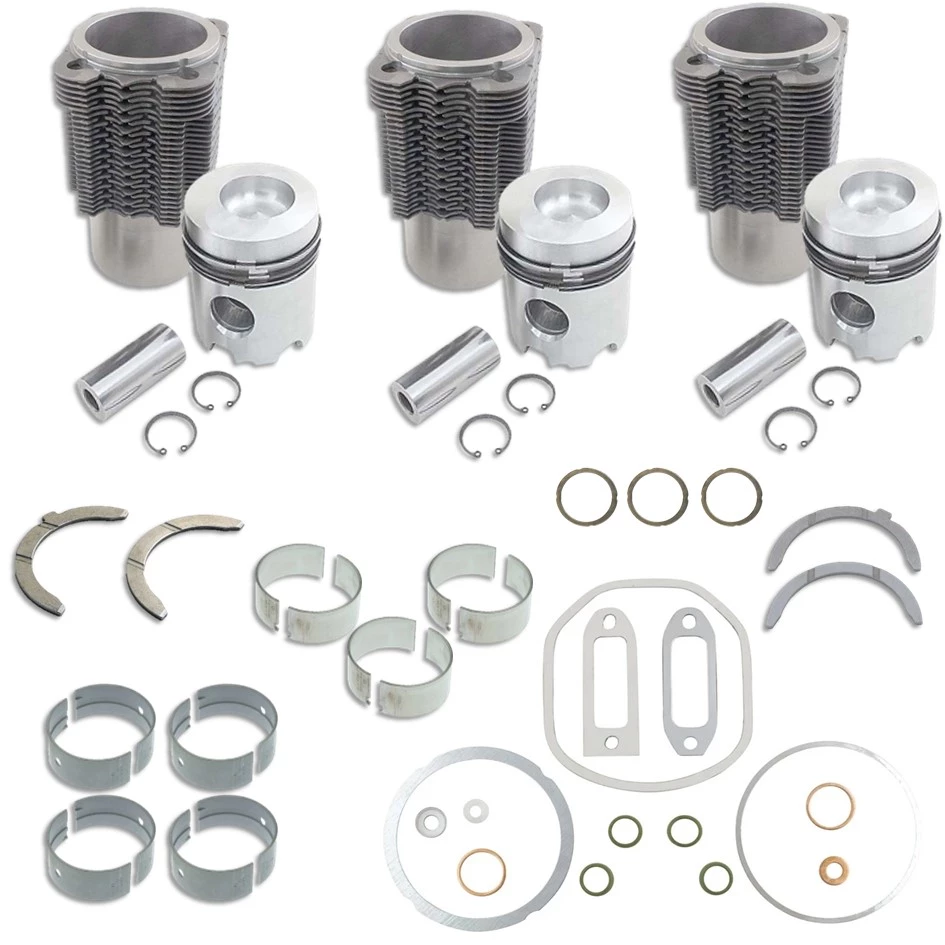

KIT COMPONETS REBUILD KIT DEUTZ F3L912:

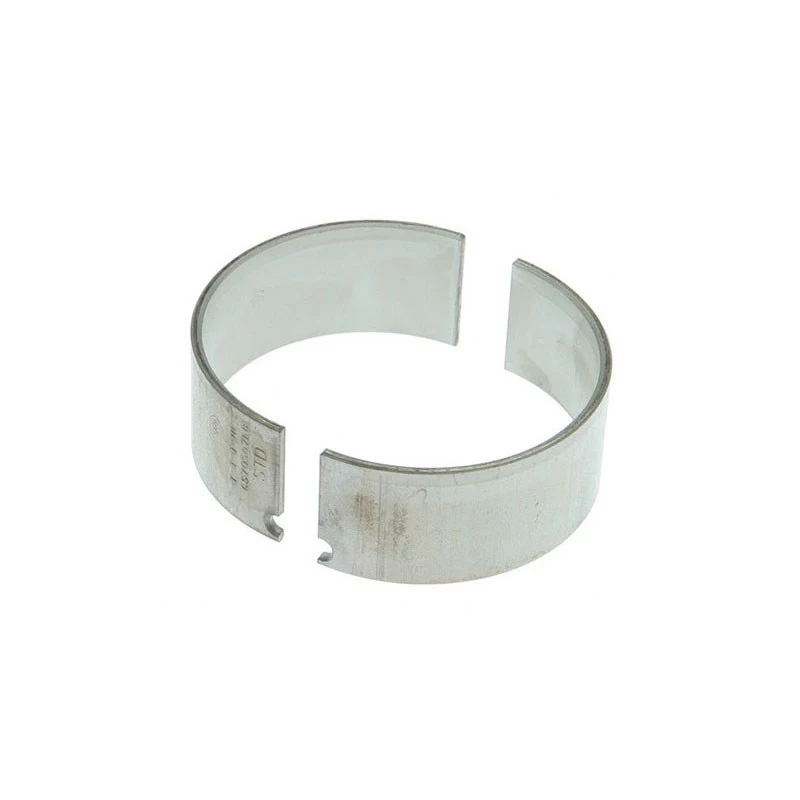

(3) ROD BEARING (SELECT: STD., 0.25MM., 0.50MM., 0.75MM., 1.00MM.)
(OEM Reference #: 2137750, 2137750V, 4231057.)

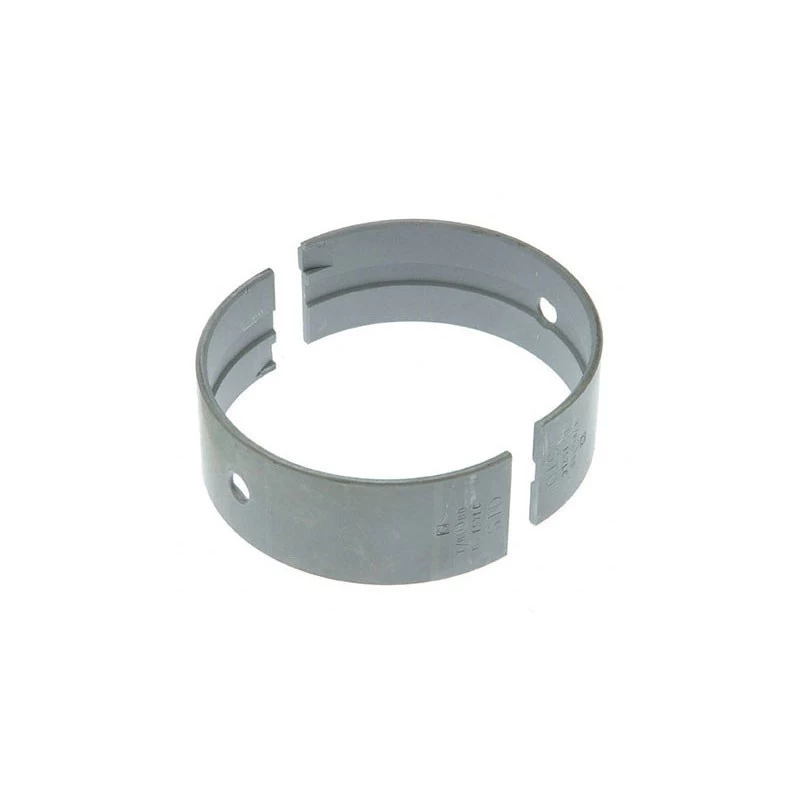

(4) MAIN BEARING (SELECT: STD., 0.25MM., 0.50MM.)
(OEM Reference #: 4231467, 3362379.)

(3) HEAD GASKET.
(OEM Reference #: 4157468)

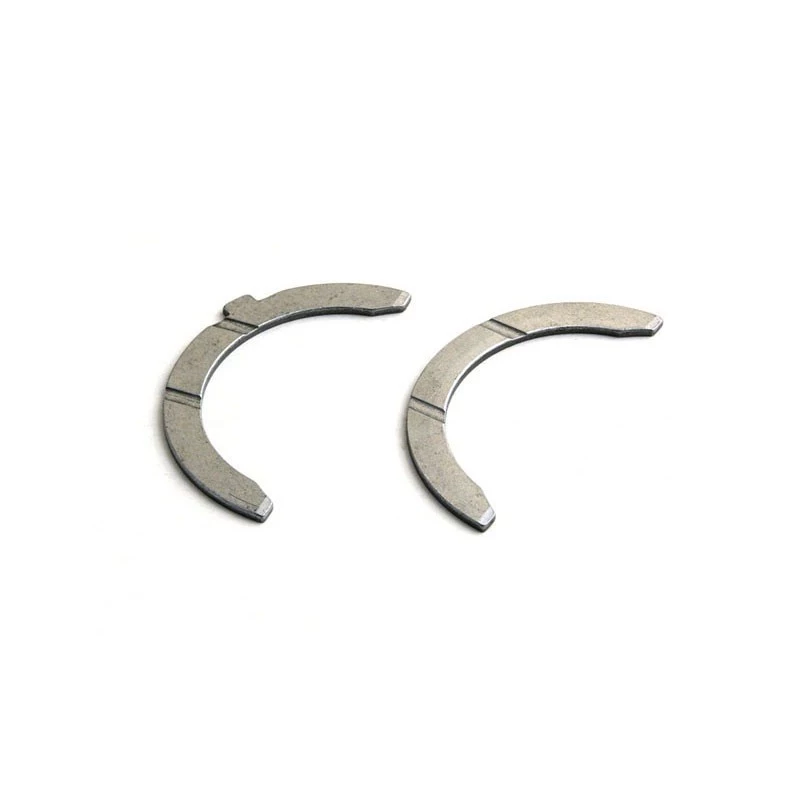

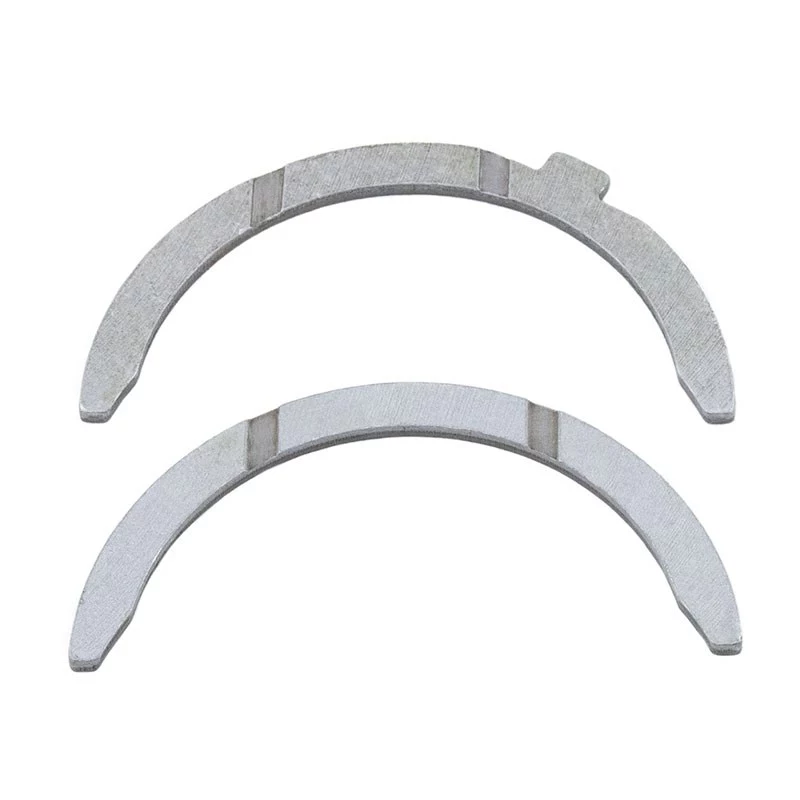

(1) THRUST WASHER SET.
(OEM Reference #: 2230181V, 2230181, 4236912, 4232786, 4232786V)

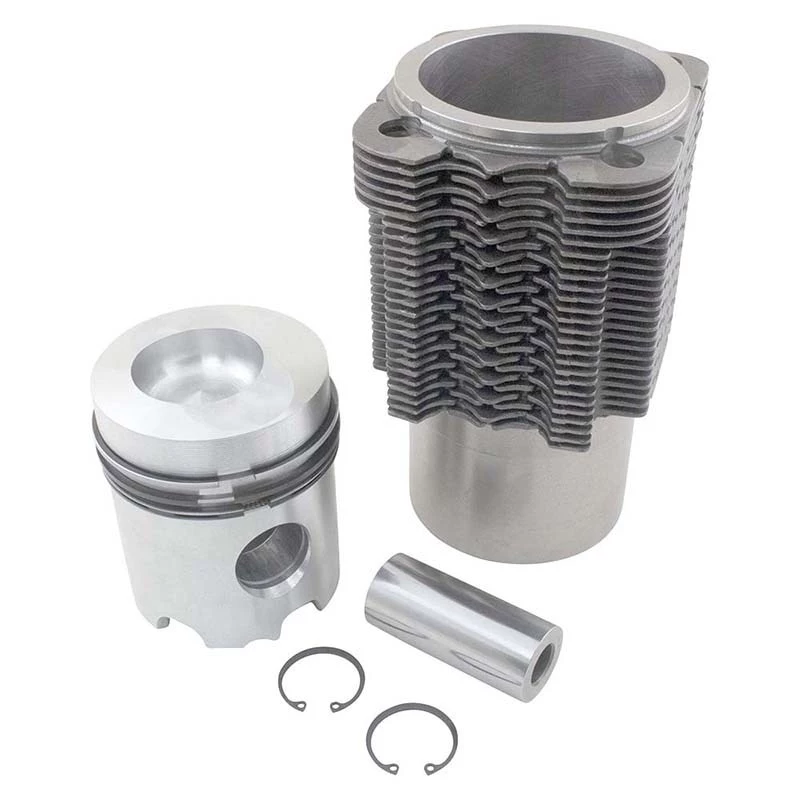

(3) CYLINDER KIT.
(OEM Reference #: 2929968V, 2928142, 2929968)

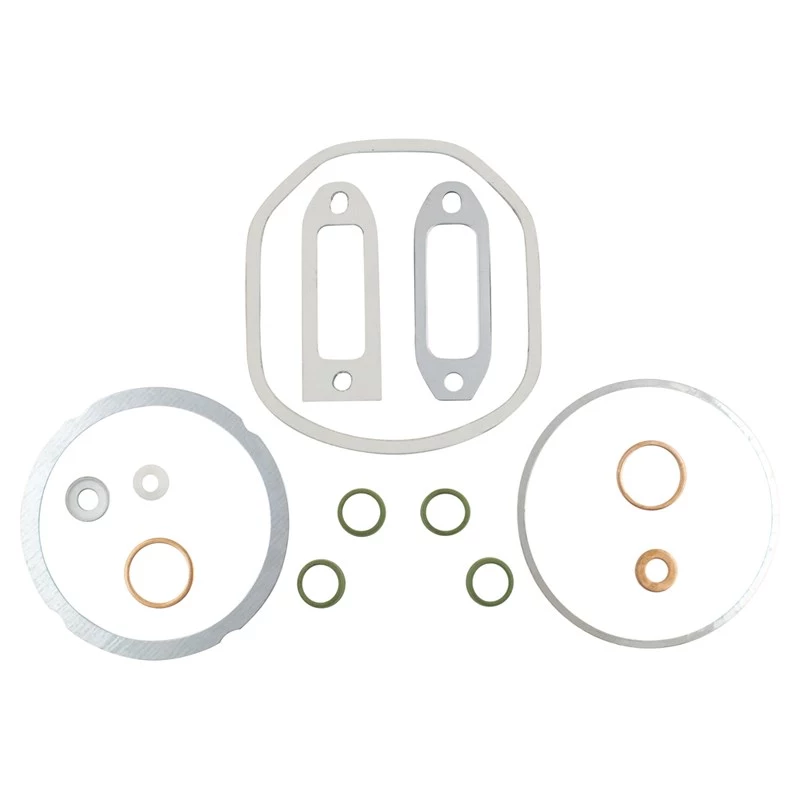

(3) HEAD GASKET SET.
(OEM Reference #: 2931476, 2910048, 31261205, 2931476V, 2928994.)

(1) TRUST WASHER SET.
(OEM Reference #: 2230171, 1481AF)

YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!

ENGINE SPECIFICATIONS:

• ENGINE MAKE: DEUTZ
• ENGINE CUBIC INCHES: 172
• ENGINE MODEL: F3L912
• ENGINE NOTES:
• OTHER NOTES:
• YEAR/SERIAL:
• FUEL: DIESEL
• CYLINDERS: 3
• BORE: 100MM
• STROKE: 120MM
• FIRING ORDER: 1-2-3
• INTAKE VALVE LASH: .006″ COLD (.152 MM)
• EXHAUST VALVE LASH: .006″ COLD (.152 MM)
• ROD TORQUE: 22 FT/LBS, +60 DEGREES, +30 DEGREES
• HEAD TORQUE: 30 FT/LBS, +45 DEGREES, +45 DEGREES, +45 DEGREES, +30 DEGREES
• MAIN TORQUE: 22 FT/LBS, +60 DEGREES, +45 DEGREES
• ROD JOURNAL DIAMETER: 2.3599-2.3606″ (59.941-59.959MM)
• MAIN JOURNAL DIAMETER: 2.7548-2.7555″ (69.972-69.99MM)
