PISTON ASSEMBLY DEUTZ F2L912, F3L912, F4L912, F5L912, F6L912 ENGINES
$155.69
SET FOR ONE CYLINDER.
In stock
Description
PISTON ASSY FOR DEUTZ F2L912, F3L912, F4L912, F5L912, F6L912 ENGINES.
SET FOR A CYLINDER.
CYLINDER DIAMETER: 100MM.

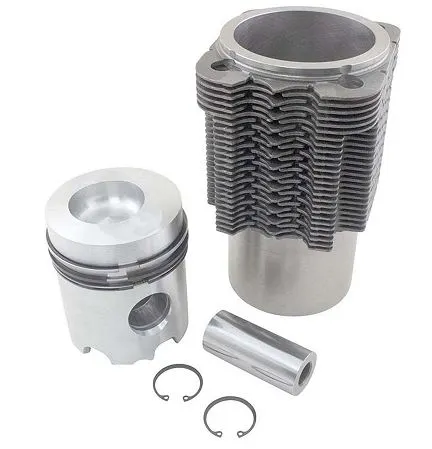

KIT COMPONENTS:
- PISTON.
- PISTON RING SET.
- PISTON PINS.
- CYLINDER LINER.
- RETAINER.
DESCRIPTION:

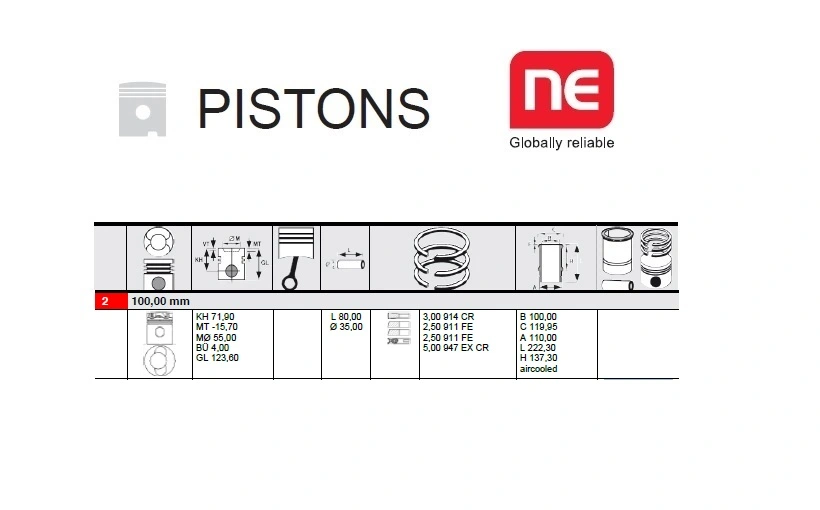

- PISTON: (COMPRESSION HEIGHT: 71.90 / CUP DEPTH: -15.70 / CUP DIAMETER: 55.00 / TOTAL LENGTH: 123.60)
- PISTON RING SET: (HEIGHT: 3.00 – 2.50 – 2.50 – 5.00)
- PISTON PINS: (LENGTH: 80.00 / DIAMETER: 35.00)
- CYLINDER SHIRTS: (BORING DIAMETER: 100.00 / FLANGE DIAMETER: 119.95 / MOUNTING DIAMETER: 110.00 / OVERALL LENGTH: 222.30 / FLANGE HEIGHT: 137.30 / SHELL TYPE: AIR COOLED
Brand
NPR of Europe GmbH
NPR of Europe GmbH is a subsidiary of the Japanese engine parts manufacturer NPR – Nippon Piston Ring Co. Ltd. Competent advice and development; product quality and reliable logistics set it apart as an original equipment manufacturer for many well-known engine manufacturers in Europe.
Its piston ring sets are being used successfully across the globe in all categories of engines – be it small two-stroke engines or large lorry diesel engines.
| Make | Model | Trim | Engine |
|---|---|---|---|
| DEUTZ | TRACTOR 6035 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR 6150 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR 6240 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR 6250 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR 6265 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D10006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D2506 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D2807 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D3006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D3607 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D4006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D4007 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D4506 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D4507 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D4807 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D5006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D5206 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D5207 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D5506 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6206 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6207 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6507 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6806 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D6807 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D7006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D7007 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D8006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR D9006 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR DX110 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR DX3.10 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR DX3.30 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR DX85 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| DEUTZ | TRACTOR DX90 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| FORD NEW HOLLAND | SKID LOADER L781 | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| FORD NEW HOLLAND | SKID LOADER L781 DELUXE | DEUTZ | F2L912 F3L912 F4L912 F5L912 F6L912 |
| Make | Model | Year | Engine | Fuel |
|---|---|---|---|---|
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F2L912 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F3L912 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F4L912 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F5L912 | |
| -SEARCH BY ENGINE- | SEARCH BY ENGINE | DEUTZ | F6L912 | |
| DEUTZ | TRACTOR 6035 | DEUTZ | F2L912 | |
| DEUTZ | TRACTOR 6150 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR 6240 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR 6250 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR 6265 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D10006 | DEUTZ | F6L912 | |
| DEUTZ | TRACTOR D2506 | DEUTZ | F2L912 | |
| DEUTZ | TRACTOR D2807 | DEUTZ | F2L912 | |
| DEUTZ | TRACTOR D3006 | DEUTZ | F2L912 | |
| DEUTZ | TRACTOR D3607 | DEUTZ | F2L912 | |
| DEUTZ | TRACTOR D4006 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D4007 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D4506 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D4507 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D4807 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D5006 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D5206 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D5207 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR D5506 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6006 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6206 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6207 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6507 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6806 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D6807 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D7006 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D7007 | DEUTZ | F4L912 | |
| DEUTZ | TRACTOR D8006 | DEUTZ | F6L912 | |
| DEUTZ | TRACTOR D9006 | DEUTZ | F6L912 | |
| DEUTZ | TRACTOR DX110 | DEUTZ | F6L912 | |
| DEUTZ | TRACTOR DX3.10 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR DX3.30 | DEUTZ | F3L912 | |
| DEUTZ | TRACTOR DX85 | DEUTZ | F5L912 | |
| DEUTZ | TRACTOR DX90 | DEUTZ | F5L912 | |
| FORD NEW HOLLAND | SKID LOADER L781 | DEUTZ | F3L912 | |
| FORD NEW HOLLAND | SKID LOADER L781 DELUXE | DEUTZ | F3L912 |
