CYLINDER LINER DEUTZ F3L914 F4L914 F5L914 F6L914 ENGINES

$162.17

FOR ONE PISTON.

SKU: 140312800 Category: Tags: , , ,

Description

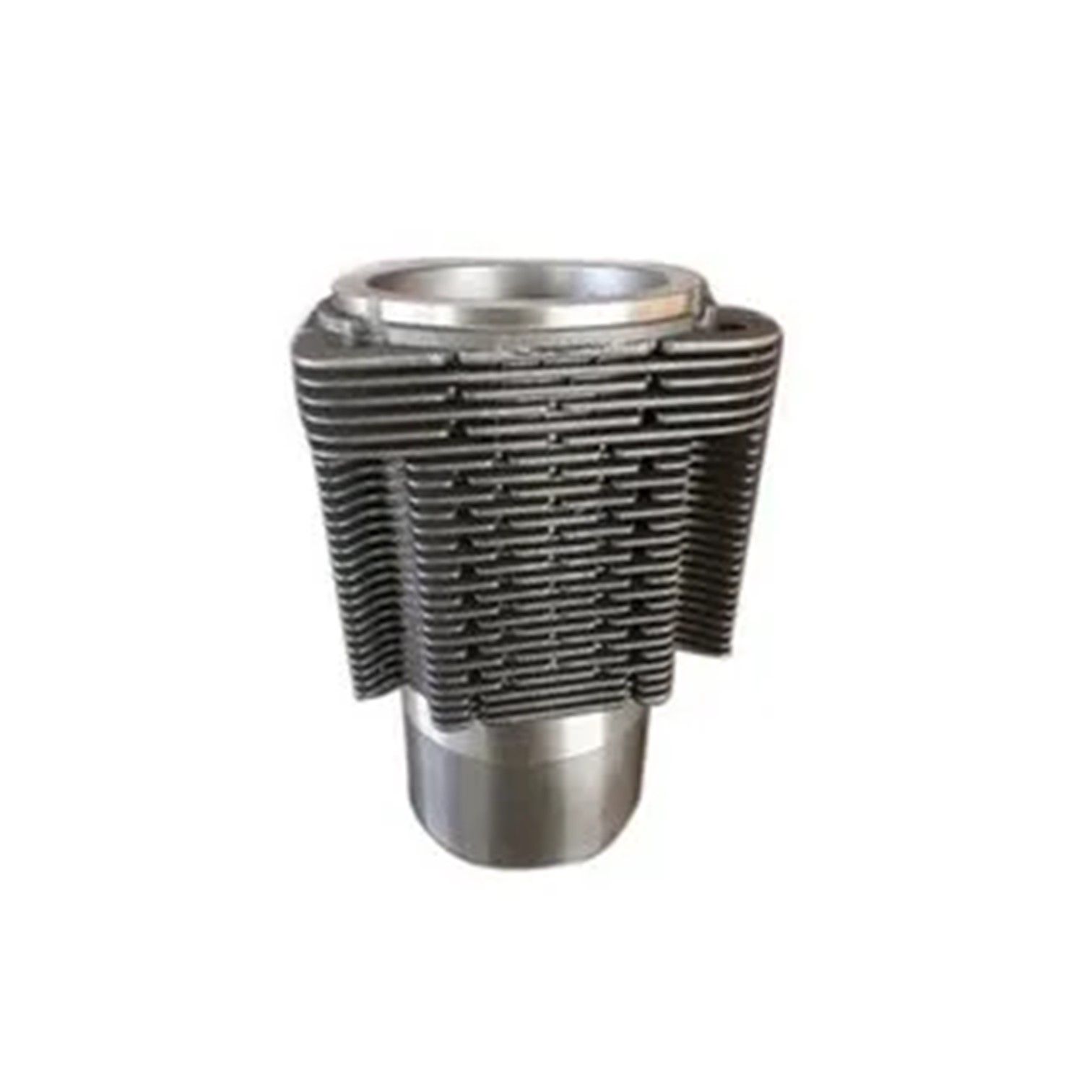

CYLINDER LINER DEUTZ FL914 SERIES ENGINES

SET FOR ONE PISTON.

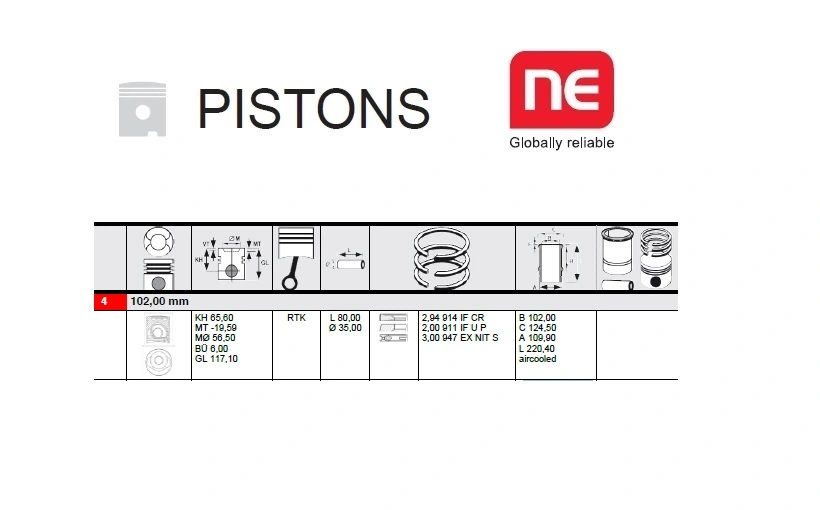

  • BORE DIAMETER: 102,00MM.
  • FLANGE DIAMETER: 124,50MM.
  • FITTING DIAMETER: 109,90MM.
  • OVERALL LENGHT: 220,40MM.
  • LINER TYPE: AIRCOOLED

FOR DEUTZ AGROPLUS 60 A, 70 A, 80 A, DEUTZ ENGINE.

👉 CHECK OUR PRODUCTS FOR DEUTZ ENGINE

ENGINE SPECIFICATIONS:

FUEL DIESEL, STROKE 132MM., CYL.: 3, 4, 5, 6., CYL.BORE: 102MM.

ORIGINAL EQUIPMENT QUALITY MADE IN GERMANY BY NPR EUROPE.

NPR OF EUROPE IS THE OE MANUFACTURER OF PISTON RING SETS FOR ALL MERCEDES BENZ DIESEL AND GASOLINE ENGINES.

OEM REFERENCE: 0423-4939, 04234939.



YOU WILL NEVER FIND THIS TOP QUALITY PRODUCT AT THIS LOW PRICE!



DEUTZ 914 SERIES ENGINES

ARE 3 TO 6-CYLINDER, NATURALLY ASPIRATED DIESEL ENGINES. THE DIESEL ENGINE SERIES IS PURELY MECHANICAL, AND WELL KNOWN FOR ITS ROBUST DESIGN AND COMPATIBILITY WITH HIGH SULFUR FUELS. INDIVIDUAL CYLINDER AND PARTS INTERCHANGEABILITY WITHIN THE 914 SERIES REDUCES INVENTORY AND SERVICE COSTS. THIS MAKES IT IDEAL FOR MINING AND MILITARY APPLICATIONS.



Engine type D 914 L3 D 914 L4 D 914 L5 D 914 L6
No. of cylinders

3

4 5

6

Bore/stroke (mm | in) 102/132|4.0/5.2 102/132|4.0/5.2 102/132|4.0/5.2 102/132|4.0/5.2
Capacity (l | cu in)

3.2 |195

4.3 |262 5,4 |330

6.5 |397

Compression ratio

21:01 21:01 21:01

21:01

Nominal speeds (min-1 | rpm)

2000 – 2300

2000 – 2300 2000 – 2300

2300

Power output as per ISO 143961) (kW | hp)

43 |58

58 |78 72.5 |97.2

86.5 |116

at speed (min-1 | rpm)

2300 2300 2300

2300

Max. torque (Nm | lb/ft)

204 |150.5

273 |201.4 337 |248.6

375 |276.6

at speed (min-1 | rpm)

1500

1500 1500

1500

Minimum idling speed (min-1 | rpm)

700

700 650-700

650-700

Specific fuel consumption2) (g/kWh | lb/hph)

225|0.37

220|0.362 218|0.358

220|0.362

Weightas per DIN 70020 Part 7A2) (kg | lb)

277 |611

307 |677 380 |838

420 |926

Additional information

Weight 3 lbs
Dimensions 7 × 4 × 4 in

Brand

NPR of Europe GmbH

NPR of Europe GmbH is a subsidiary of the Japanese engine parts manufacturer NPR – Nippon Piston Ring Co. Ltd.  Competent advice and development; product quality and reliable logistics set it apart as an original equipment manufacturer for many well-known engine manufacturers in Europe. Its piston ring sets are being used successfully across the globe in all categories of engines – be it small two-stroke engines or large lorry diesel engines.
CYLINDER LINER DEUTZ F3L914 F4L914 F5L914 F6L914 ENGINES
Make Model Trim Engine
DEUTZ AGROPLUS 60 A DEUTZ F3L914 F4L914 F5L914 F6L914
DEUTZ AGROPLUS 70 A DEUTZ F3L914 F4L914 F5L914 F6L915
DEUTZ AGROPLUS 80 A DEUTZ F3L914 F4L914 F5L914 F6L916
